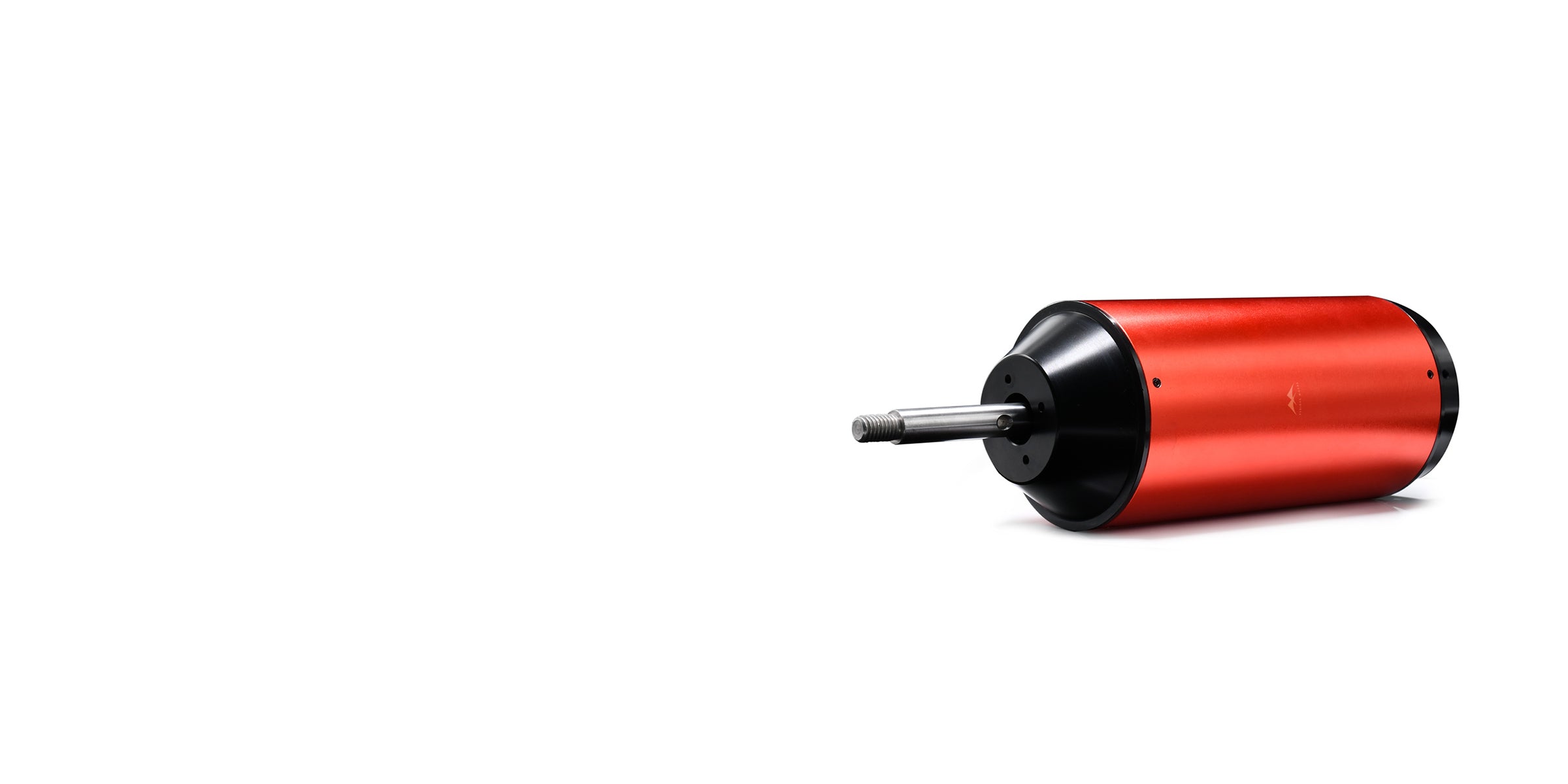

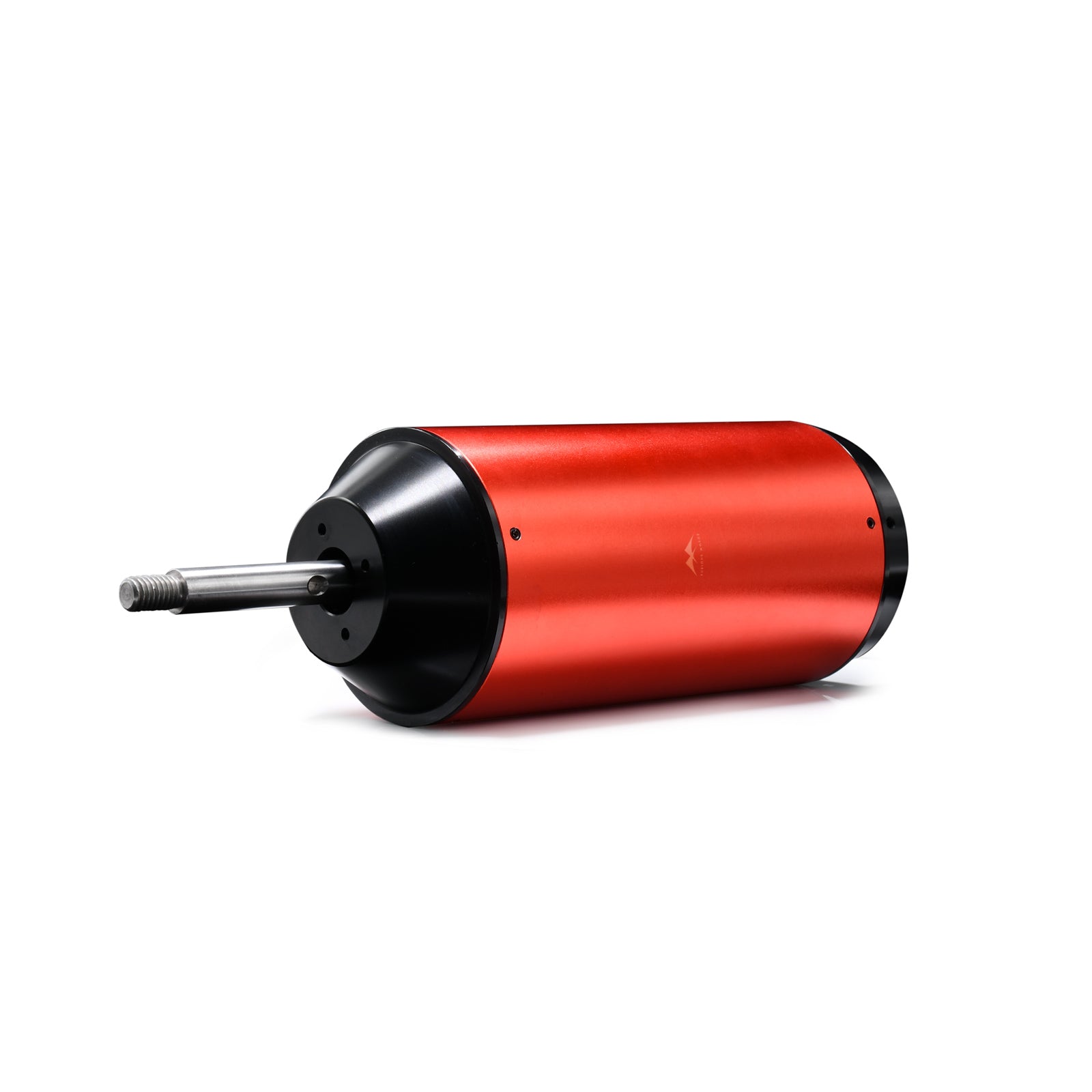

70141 Waterproof Underwater IP68 Inrunner DC Brushless Motor for Efoil Jet Boat and Underwater Scooter
70141 Waterproof Underwater IP68 Inrunner DC Brushless Motor for Efoil Jet Boat and Underwater Scooter
Sale price$313.00
Regular price (/)

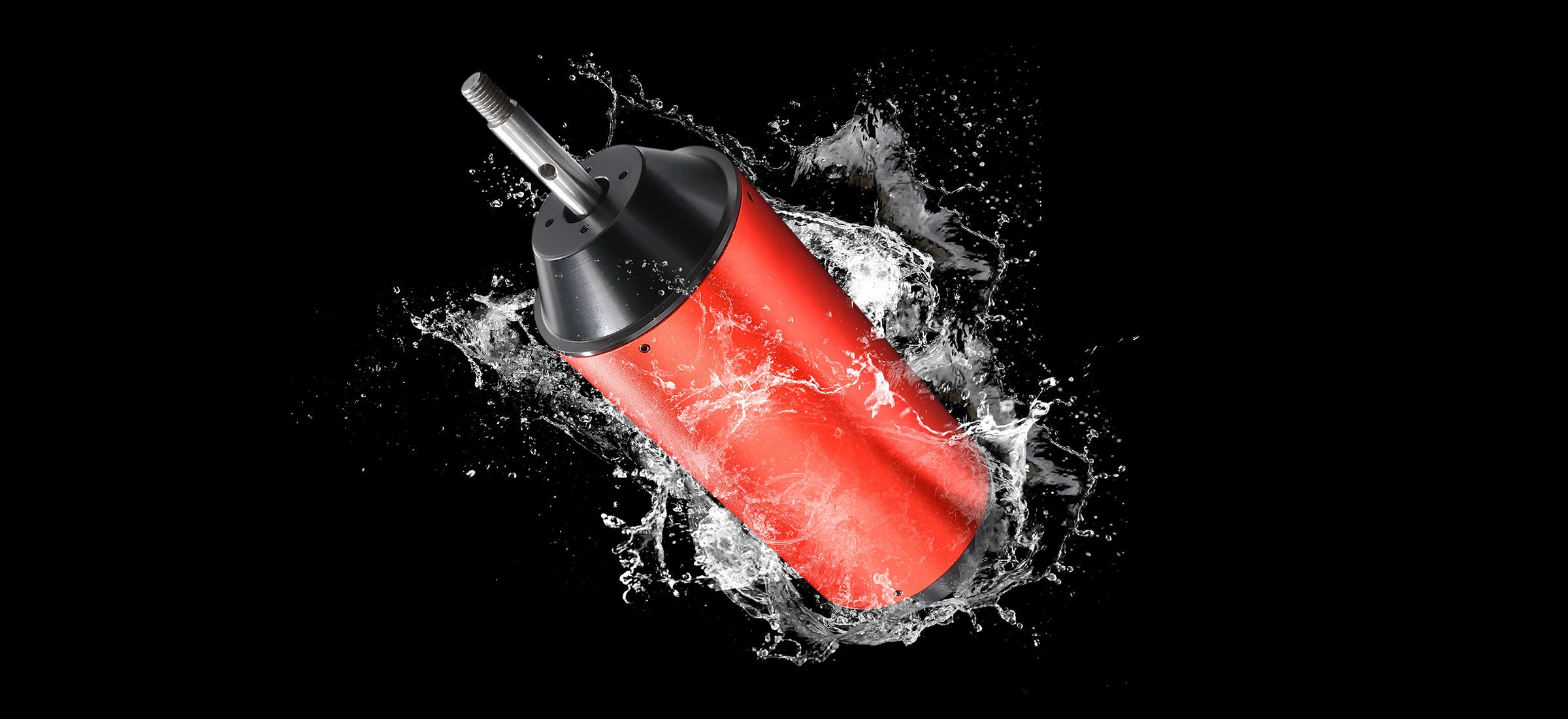

IP68 ingress protection, take account of both dustproof and heat dissipation, properly handle usages in underwater environments.
CNC processed components, 100% dynamic balance adjustment to ensure safe, smooth and exciting surfing experience.
Bearings are imported from worldwide well-recognized suppliers, ensuring perfect stability and durability.
Rustproof and hard anodized aluminum alloy propeller, works perfectly with Deepocean 70-131 underwater motor.
9N·m
Max. Torque
50KG
Max. Thrust
Tech Specs
Specs shown here are test results based on standard model, you are most welcome to contact us to customize a product that work the best for you.
Dimension
Φ70mm x 141mm
KV Availability
100 / 120 / 200 / 250 / 320
Max. Thrust
50KG
Max. Torque
9N·m
Max. RPM
25000
ESC
75V 200A / 75V 300A
Max. Voltage
100V
Peak Current
200A
Idle Current
1.7A
Max. Power
15KW
Resistance
0.035Ω
Configuration
12N14P
Shaft Diameter
10mm
Weight
1.9KG
Ingress Protection
IP68
Hall Sensor
Optional
Watercooling
Optional
