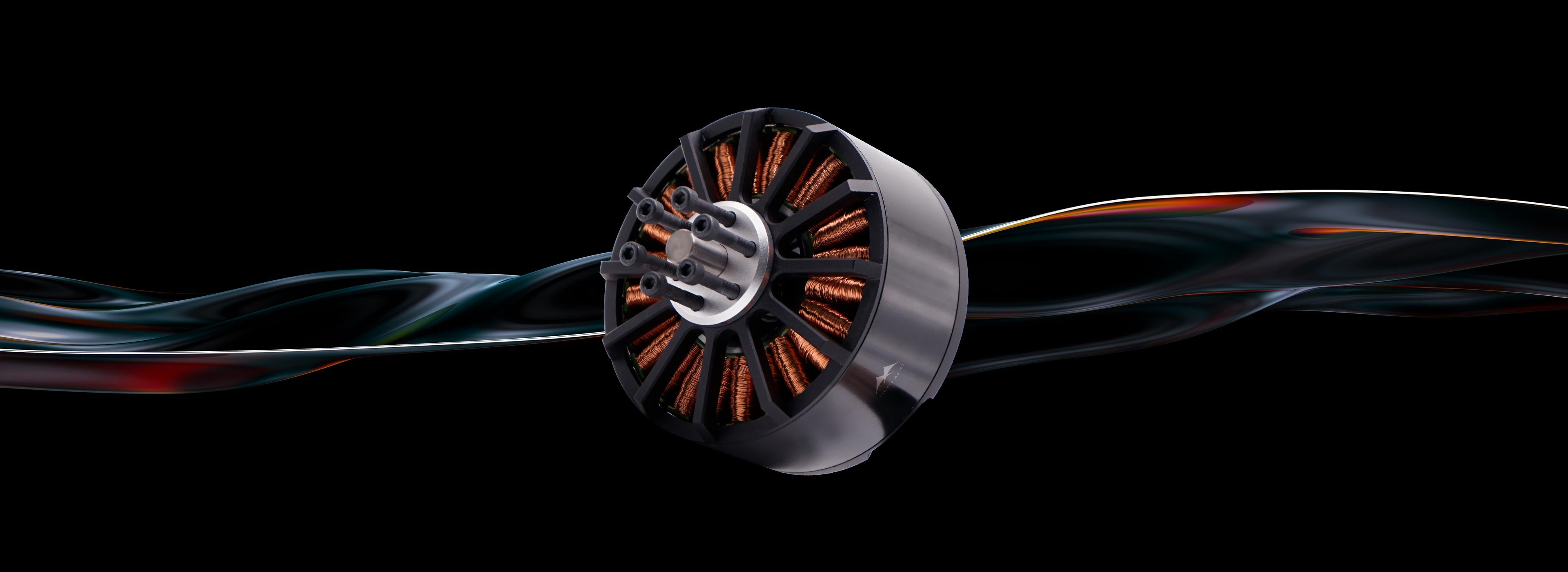

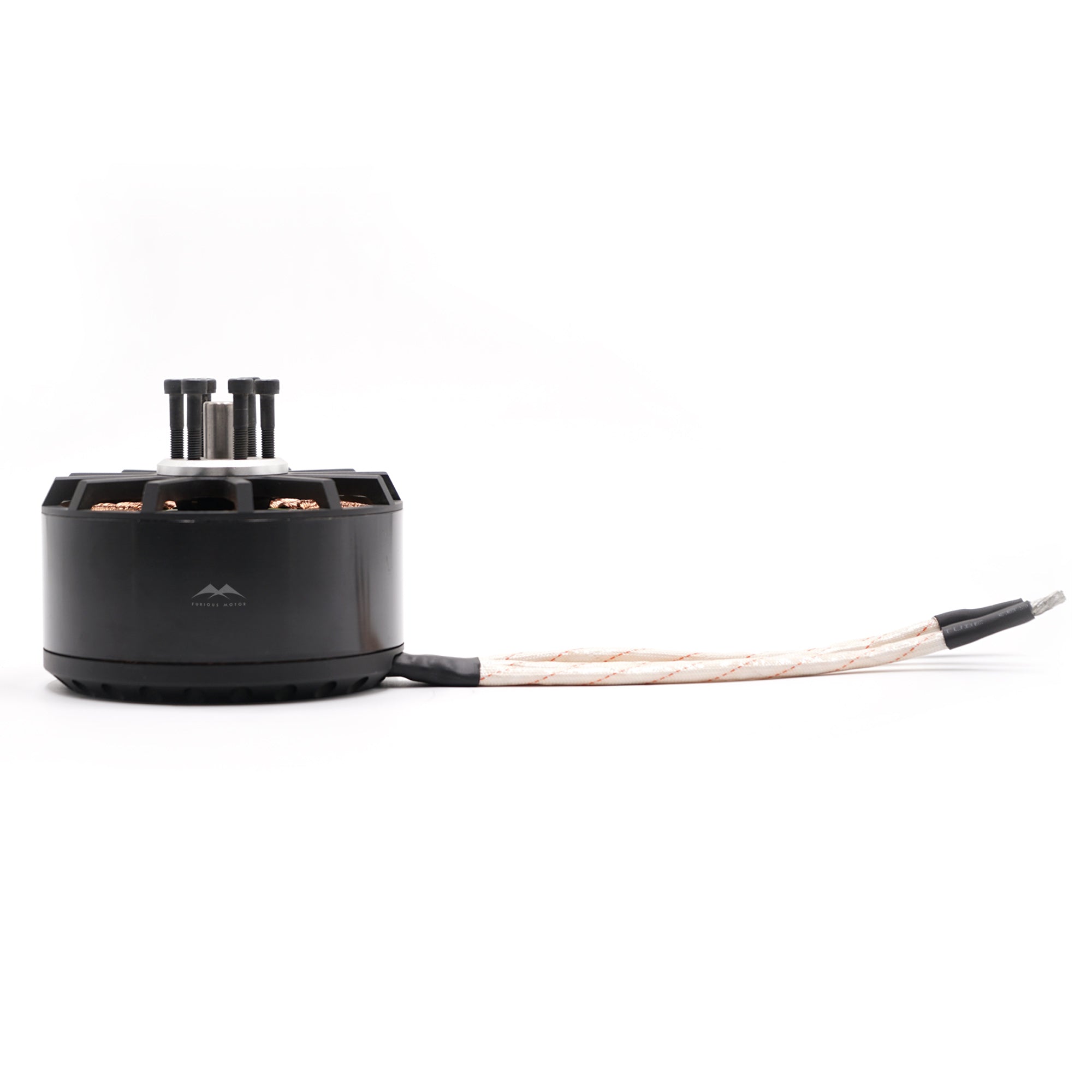

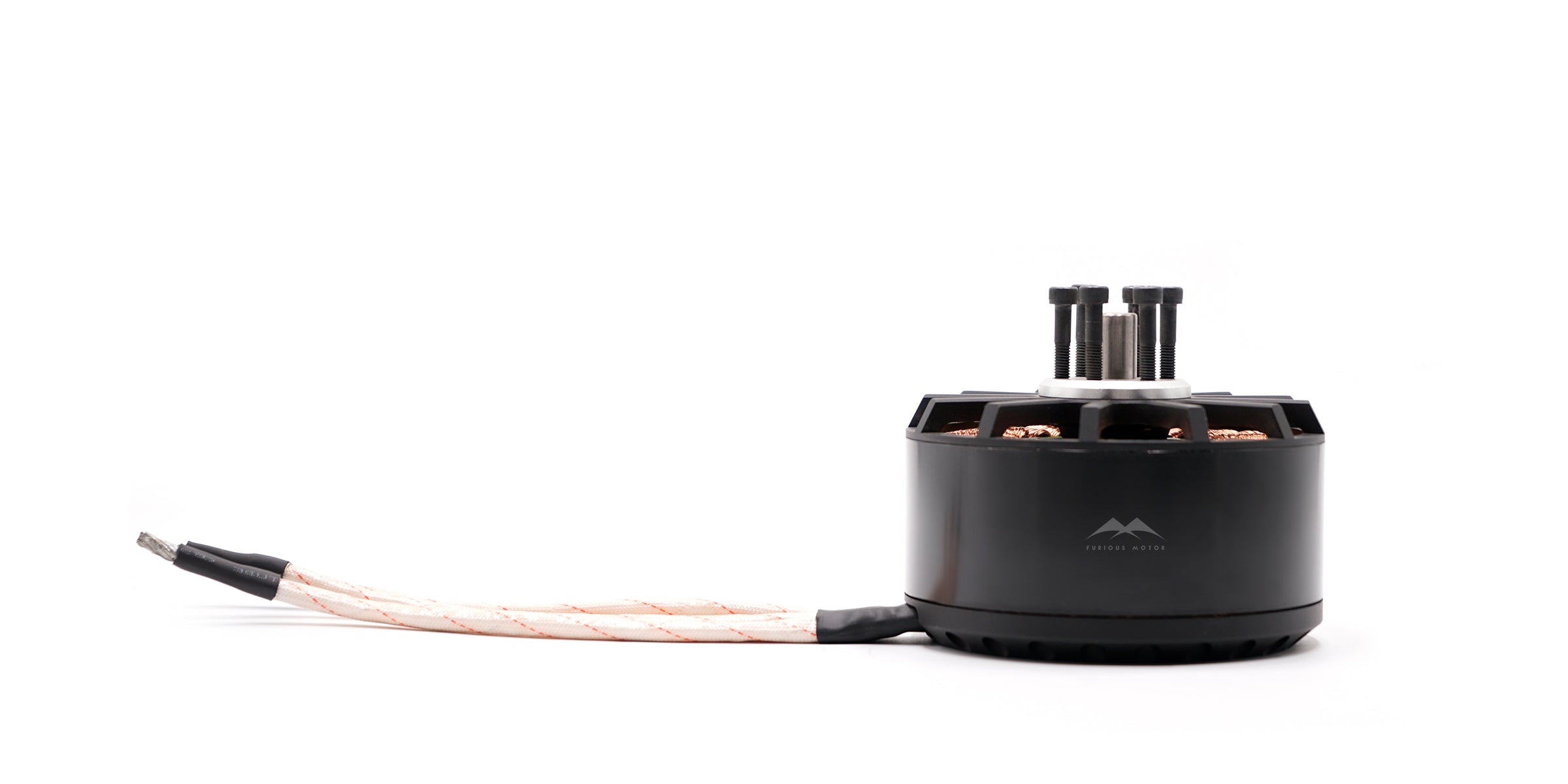

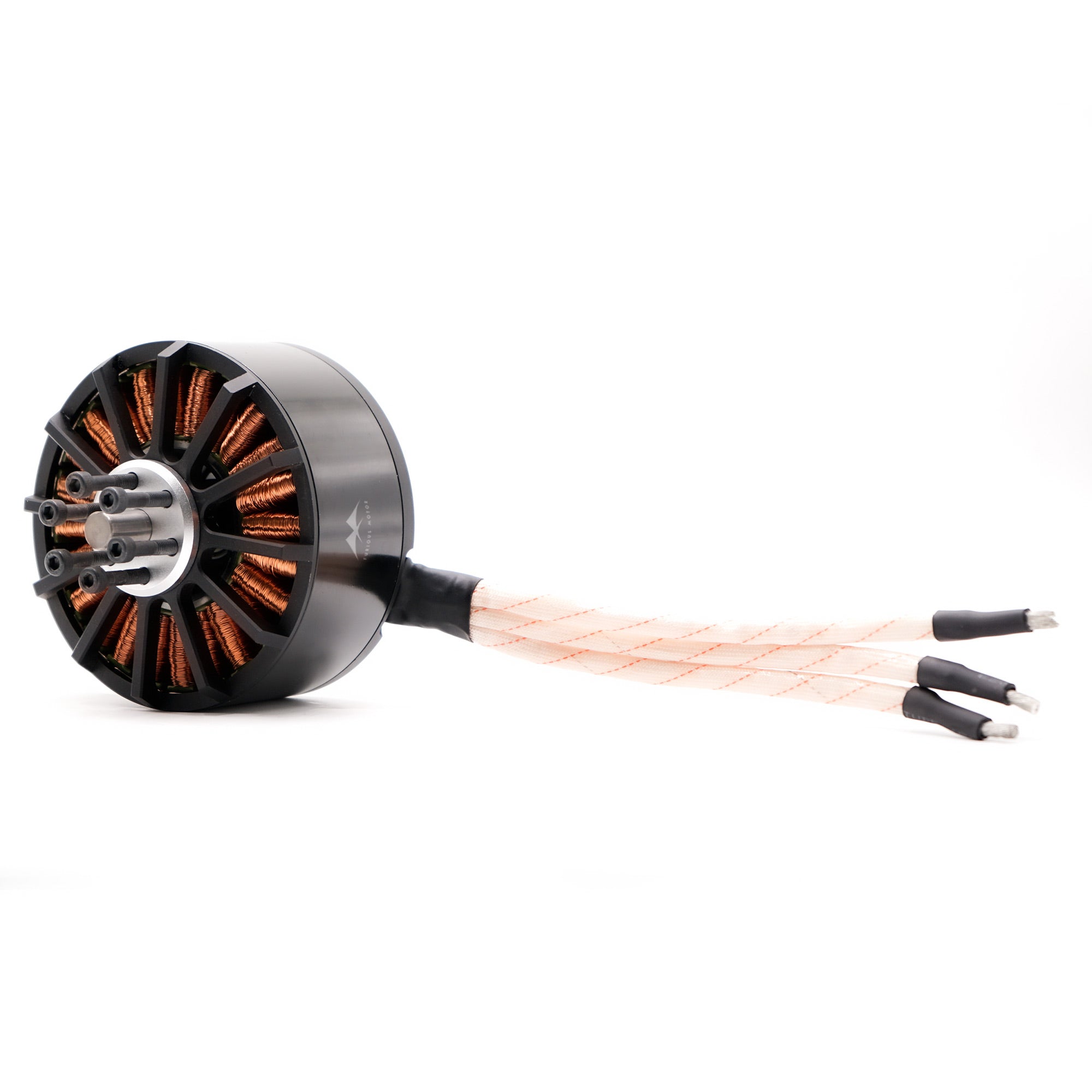

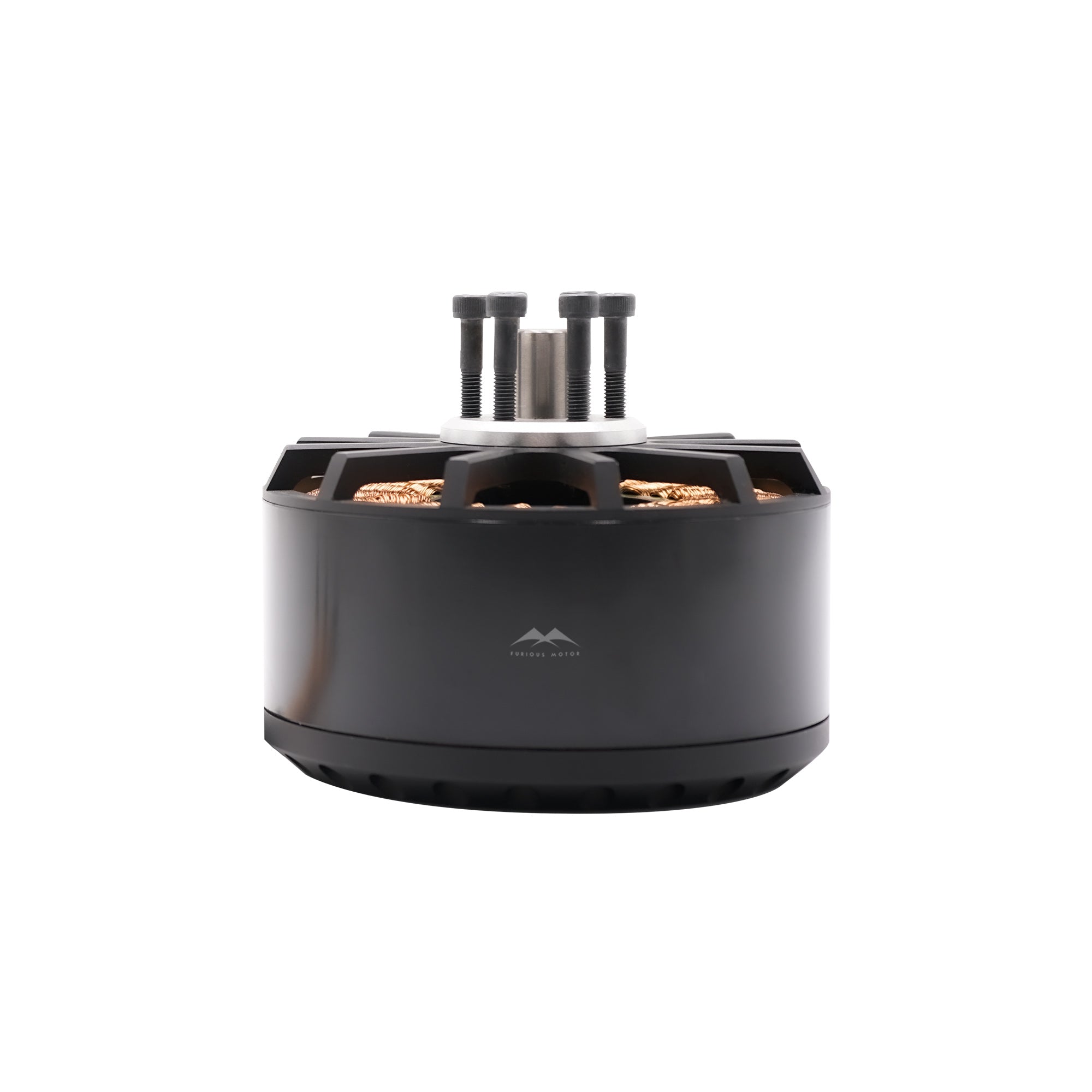

12070 41KG BLDC Motor with Motor Controller and Propeller for VTOL UAV Heavy Lift Drone
12070 BLDC motor is a versatile and efficient choice for multi rotor drone. With a propeller size of 36 inch and a 24S 150A ESC, it delivers substantial power. With a maximum thrust of 40KG, it provides reliable performance.
40 KG
Max. Thrust
25 N·m
Max. Torque
100% hand-winding wire with special coating layer, featuring temperature resistant, aging resistant and fireproof.
Curved magnet, it improve efficiency, dissipate heat effectively, and minimize vibration and noise.
Curved magnet, it improve efficiency, dissipate heat effectively, and minimize vibration and noise.
0.2mm laminations, thinner laminations improve power density and lead to higher efficiency, smoother operation.
Application
Multi rotor drone
Propulsion system
Main Specifications
Specs shown here are test results based on standard model, you are most welcome to contact us to customize a product that work the best for you.

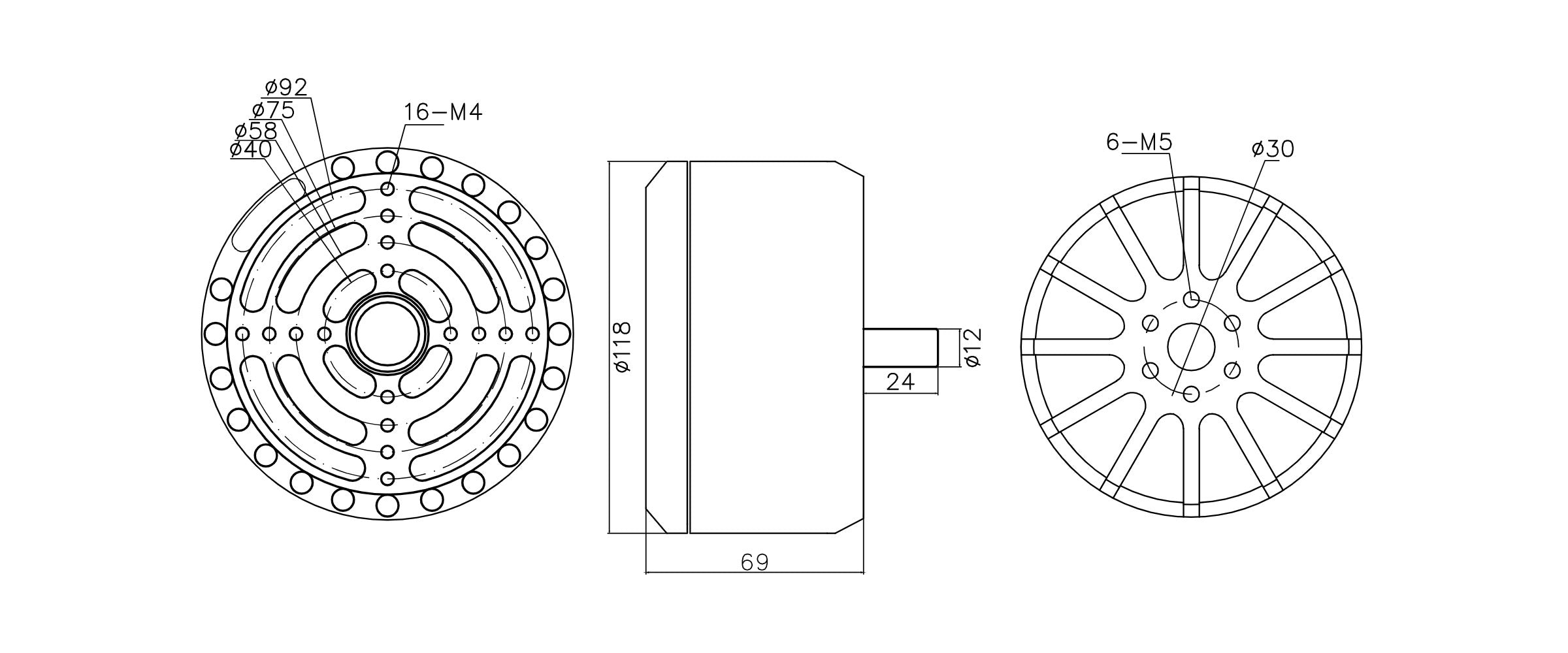

ø120 x 70mm
80 / customized
40KG
25N·m
6400
24S 150A
36 inch
220A
80V
16KW
12S-24S
Optional
2.4KG
